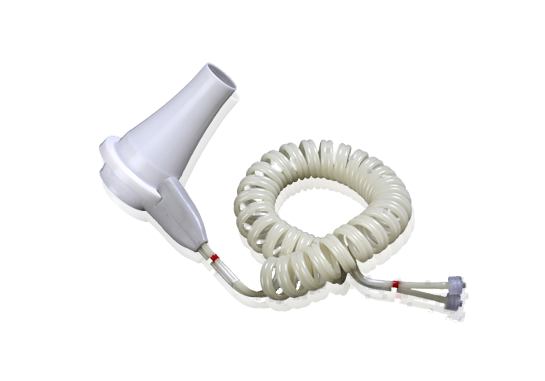

Sensor Spirometer adds to the standard values taken from the basis
configuration, the functions of a professional
spirometer will be added to the standard values collected
by the basis configuration. This test allows to obtain
some information regarding the lungs' health of a
patient, pointing out the possible pathologies of
respiratory system. The the considered values are:
VC, IVC, FEV1, PEF, FVC, FER, F50, F25, MEF, I50,R50,
For each one it is considered both
the theoretic value and the range into which the taken
measure should fall, according to the various reference
theoretic values chosen.
Besides it is possible to choose
the source of the reference theoretic values, which
can be one of the following: CECA '71 and '83, Knudson Morris, MC Barcelona and Zapletal.
The
spirometric tests that it's possible to do are:
• slow
vital capability (expiratory/inhalatory)
• forced basal vital capability (expiratory/inhalatory)
• post bronchus dilatation forced vital capability (expiratory/inhalatory)
• provocation test on a substance (istamina/metacolina/other).

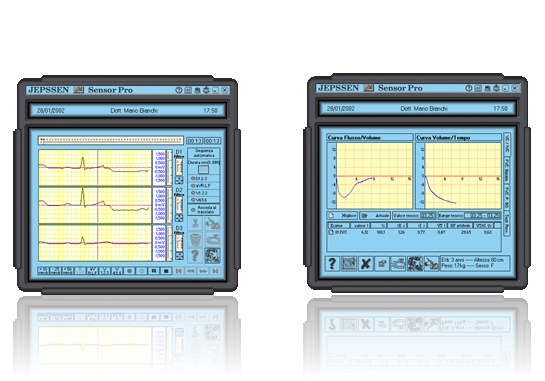

Each
test made, is visualized with a specific diagram or
panel:
• test
of the slow vital capability - the diagram
visualizes the curves of the VC,IVC, at the best
• test of the forced basal vital capability - the diagram visualizes the curves of the FVC
expiratory, of the FVC inhalatory, at the best
and last made test
• test of the post bronchus dilatation forced vital
capability - the diagram visualizes the
curves of the expiratory FVC, of the inhalatory
FVC, at the best and the last made test and to
the best got basal FVC test
• provocation test on a substance - the
panel visualizes the last basal value, the quantity
and the type of a taken substance, the time passed
from the administration of the substance, the
FEV1 value and, through some proper leds, the
limits of the reference levels.
It's
possible to print all the obtained diagrams and the
collected values:
• inserting
if necessary every kind of visualized curves or
only the measured values
• selecting the test and including, if
necessary, the curves to be printed, the measured
values or the best basal and bronchus dilatation
test made.
In
the provocation test, it's possible, besides, to select
if including in the print both the data relative to
the administered substance, and the value of the basal
FEV1. |

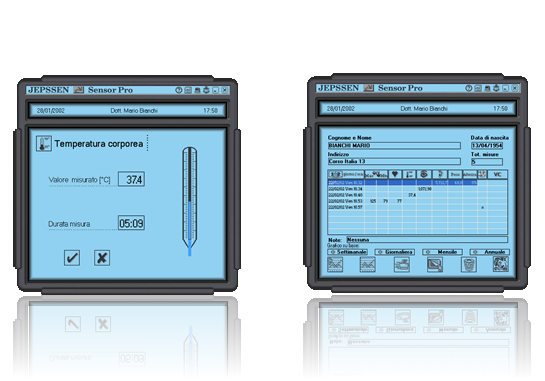

The monitoring of the patients staying in hospital
is made simple with the use of Sensor Pro for daily
measurements, having the possibility to record automatically
the results and to have the availability of them both
in paper form both on the computer, in order to obtain
a more careful analysis. Linking Sensor to the Modem
Fax Voice, WLan and PowerLine modules, the data got
in real time, the case sheets and the diagrams can
be shared with some other computers in network (lan,
internet, e-mail) or can be sent to a normal fax machine.
